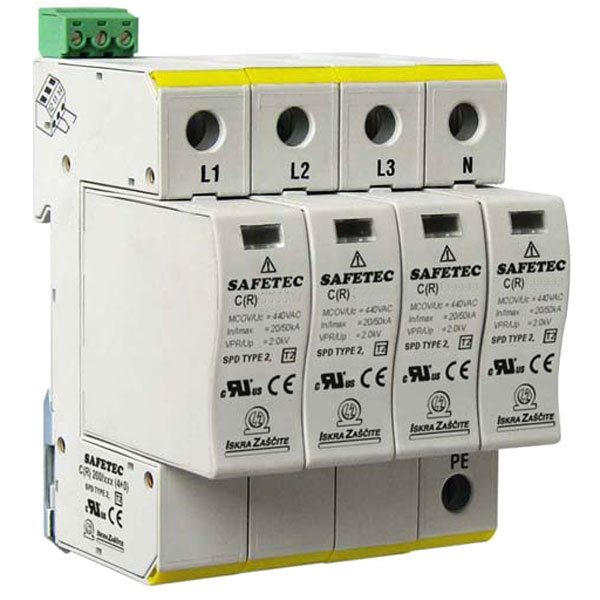

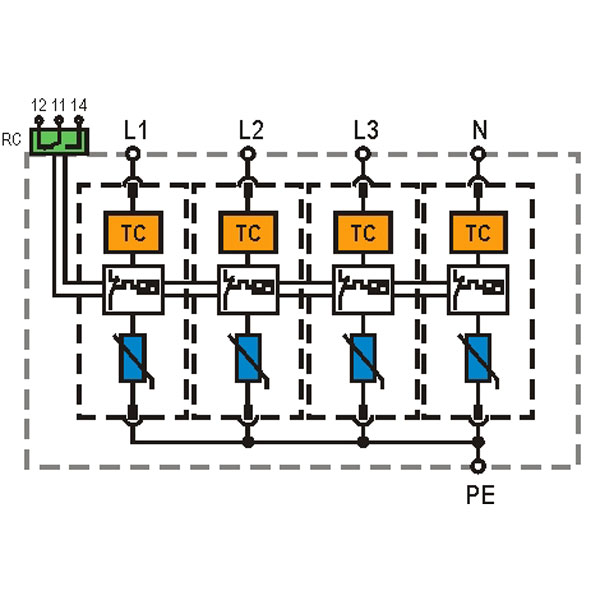

Typ | SAFETEC C(R) 80/xxx (4+0) UL | ||
---|---|---|---|
750 | 880 | ||
Elektische Eigenschaften | |||
max. Dauerspannung (AC) | MCOV | 750 V AC | 880 V AC |
Nennableitstoßstrom (8/20) | In | 10 kA | 10 kA |
max. Ableitstrom (8/20) | Imax | 20 kA | 20 kA |
Voltage Protection Rating nach UL 1449 3rd Edition |

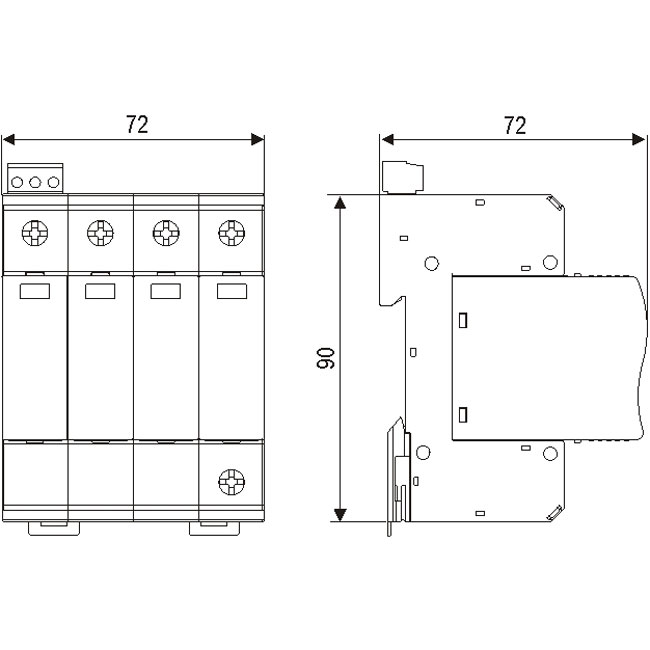

VPR | 2,5 kV | 3,0 kV |
Kurzschlußstrom | SCCR | 200 kA | 200 kA |
Netzfolgestrom | Ifi | Nein | Nein |
Ansprechzeit | tA | < 25 ns | < 25 ns |
Wärmeschutz | Ja | Ja | |
TOV Immunität (für unbegrente Zeit) | UT | Ja | Ja |
Mechanische Eigenschaften | |||
Anzugsdrehmoment | max. 3,0 Nm | ||
Temperaturbereich | -40°C ... + 80°C | ||
Anschlussquerschnitt | 35 mm2 (fest) / 25 mm2 (flexibel) | ||
Montage | 35 mm Hutschiene (DIN Rail), EN 60715 | ||
Schutzkalsse | IP 20 | ||
Anzeige der Abtrennvorrichtung | Rot | ||
Physische Eigenschaften | |||
Gehäusematerial | Thermoplastisch; Gehäusefestigkeit nach UL 94 V-0 | ||
Größe DIN 43880 | 4 TE | 4 TE | |
Gewicht pro Einheit SAFETEC C 80/xxx (4+0) |
624 g | 624 g | |
Gewicht pro Einheit SAFETEC CR 80/xxx (4+0) |
632 g | 632 g | |
Fernmeldekontakt | |||
Fernsignal Kontakte | Ja, bei Typ SAFETEC CR 80/xxx (4+0) | ||
Kontaktbelastung | AC: 250 V / 0,5 A; 125 V / 3 A | ||
Anschlussquerschnitt (Fernsignal) | max 1,5 mm2 | ||
Anzugsdrehmoment für Fernsignal | 0,25 Nm |
Artieklnummer | Artikelbezeichnung | Kurzbeschreibung |
---|---|---|
I-516103 | SAFETEC C 80/750 (4+0) | Imax = 20 kA pro Pol - vierpolig MCOV = 750VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516104 | SAFETEC CR 80/750 (4+0) | Imax = 20 kA pro Pol - vierpolig MCOV = 750VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516592 | SAFETEC C 80/880 (4+0) | Imax = 20 kA pro Pol - vierpolig MCOV = 880VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516593 | SAFETEC CR 80/880 (4+0) | Imax = 20 kA pro Pol - vierpolig MCOV = 880VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
Artieklnummer | Artikelbezeichnung | Kurzbeschreibung |
---|---|---|
I-516080 | SAFETEC C 40/750 (2+0) | Imax = 20 kA pro Pol - zweipolig MCOV = 750VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516081 | SAFETEC CR 40/750 (2+0) | Imax = 20 kA pro Pol - zweipolig MCOV = 750VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516588 | SAFETEC C 40/880 (2+0) | Imax = 20 kA pro Pol - zweipolig MCOV = 880VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516589 | SAFETEC CR 40/880 (2+0) | Imax = 20 kA pro Pol - zweipolig MCOV = 880VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516091 | SAFETEC C 60/750 (3+0) | Imax = 20 kA pro Pol - dreipolig MCOV = 750VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516092 | SAFETEC CR 60/750 (3+0) | Imax = 20 kA pro Pol - dreipolig MCOV = 750VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516590 | SAFETEC C 60/880 (3+0) | Imax = 20 kA pro Pol - dreipolig MCOV = 880VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516591 | SAFETEC CR 60/880 (3+0) | Imax = 20 kA pro Pol - dreipolig MCOV = 880VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
Artieklnummer | Artikelbezeichnung | Kurzbeschreibung |
---|---|---|
I-516070 | SAFETEC C 100/150 (2+0) | Imax = 50 kA pro Pol - zweipolig MCOV = 150VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516071 | SAFETEC CR 100/150 (2+0) | Imax = 50 kA pro Pol - zweipolig MCOV = 150VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516072 | SAFETEC C 100/277 (2+0) | Imax = 50 kA pro Pol - zweipolig MCOV = 300VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516073 | SAFETEC CR 100/277 (2+0) | Imax = 50 kA pro Pol - zweipolig MCOV = 300VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516074 | SAFETEC C 100/385 (2+0) | Imax = 50 kA pro Pol - zweipolig MCOV = 385VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516075 | SAFETEC CR 100/385 (2+0) | Imax = 50 kA pro Pol - zweipolig MCOV = 385VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516076 | SAFETEC C 100/440 (2+0) | Imax = 50 kA pro Pol - zweipolig MCOV = 440VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516077 | SAFETEC CR 100/440 (2+0) | Imax = 50 kA pro Pol - zweipolig MCOV = 440VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516082 | SAFETEC C 150/150 (3+0) | Imax = 50 kA pro Pol - dreipolig MCOV = 150VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516083 | SAFETEC CR 150/150 (3+0) | Imax = 50 kA pro Pol - dreipolig MCOV = 150VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516084 | SAFETEC C 150/277 (3+0) | Imax = 50 kA pro Pol - dreipolig MCOV = 300VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516085 | SAFETEC CR 150/277 (3+0) | Imax = 50 kA pro Pol - dreipolig MCOV = 300VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516086 | SAFETEC C 150/385 (3+0) | Imax = 50 kA pro Pol - dreipolig MCOV = 385VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516087 | SAFETEC CR 150/385 (3+0) | Imax = 50 kA pro Pol - dreipolig MCOV = 385VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516088 | SAFETEC C 150/440 (3+0) | Imax = 50 kA pro Pol - dreipolig MCOV = 440VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-518089 | SAFETEC CR 150/440 (3+0) | Imax = 50 kA pro Pol - dreipolig MCOV = 440VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516090 | SAFETEC C 150/550 (3+0) | Imax = 50 kA pro Pol - dreipolig MCOV = 550VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516130 | SAFETEC CR 150/550 (3+0) | Imax = 50 kA pro Pol - dreipolig MCOV = 550VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516093 | SAFETEC C 200/150 (4+0) | Imax = 50 kA pro Pol - vierpolig MCOV = 150VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516094 | SAFETEC CR 200/150 (4+0) | Imax = 50 kA pro Pol - vierpolig MCOV = 150VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516095 | SAFETEC C 200/277 (4+0) | Imax = 50 kA pro Pol - vierpolig MCOV = 300VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516096 | SAFETEC CR 200/277 (4+0) | Imax = 50 kA pro Pol - vierpolig MCOV = 300VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516097 | SAFETEC C 200/385 (4+0) | Imax = 50 kA pro Pol - vierpolig MCOV = 385VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516098 | SAFETEC CR 200/385 (4+0) | Imax = 50 kA pro Pol - vierpolig MCOV = 385VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
I-516099 | SAFETEC C 200/440 (4+0) | Imax = 50 kA pro Pol - vierpolig MCOV = 440VAC TOV Immunität (für unbegrente Zeit) Entspricht: UL 1449 3. Ausgabe |
I-516100 | SAFETEC CR 200/440 (4+0) | Imax = 50 kA pro Pol - vierpolig MCOV = 440VAC TOV Immunität (für unbegrente Zeit) mit Fernmeldekontakt Entspricht: UL 1449 3. Ausgabe |
